German Engineering • Premium Carbon
CustomFrameset
Engineered for Excellence • Tailored to Your Body
Each frameset is carefully crafted to match your body proportions, ensuring the perfect fit for maximum efficiency and comfort on every ride.
Size Guide
| SIZE | 490 | 520 | 550 | 580 |
|---|---|---|---|---|
| BODY HEIGHT | 165-172cm | 173-179cm | 180-186cm | 187-194cm |
For reference only, may vary due to different body proportions
Precise Geometry
Expertly designed for optimal performance and comfort with precision engineering
Select Size:
Stack
563.4mm
Reach
377.5mm
Head Angle
71.5°
Seat Angle
73°
Precise geometry: STACK and REACH are key measurements used by professional bike fitters to determine the perfect frame size. Our frames are designed with a focus on these parameters for optimal positioning.
Full Geometry Specifications
| Geometry Specifications - Size 520 | |||
|---|---|---|---|
| SEAT TUBE LENGTH | 520mm | HEAD TUBE LENGTH | 140mm |
| TOP TUBE LENGTH | 550mm | STACK | 563.4mm |
| REACH | 377.5mm | WHEELBASE | 1014.5mm |
| CHAINSTAY LENGTH | 430mm | FRONT CENTER | 599.4mm |
| BB DROP | 70mm | BB HEIGHT | 285mm |
| SEAT TUBE ANGLE | 73° | HEAD TUBE ANGLE | 71.5° |
| FORK RAKE/OFFSET | 50mm | FORK LENGTH | 397mm |
| TRAIL | 66.1mm | SEATPOST INSERT LENGTH | 220mm |
| STANDOVER HEIGHT (700C) | 793.4mm | STANDOVER HEIGHT (650B) | 783.4mm |
Design Details
Engineered with Toray T700 carbon fiber for the perfect balance of performance, aesthetics, and functionality
Engineered for Excellence
Our frameset combines cutting-edge carbon technology with meticulous attention to detail. From the precisely calculated geometry to the integrated storage solutions, every element is designed to enhance your riding experience.
Electronic Ready
Di2 and electronic groupset compatible with hidden battery integration
ISO Certified
Meets ISO4210 standards for performance, durability and safety
Integrated Seatpost
Custom designed aero seatpost with optimized carbon layup providing the perfect balance of comfort and performance. Available in SP02 (25mm) and SP03 (15mm) setback options.

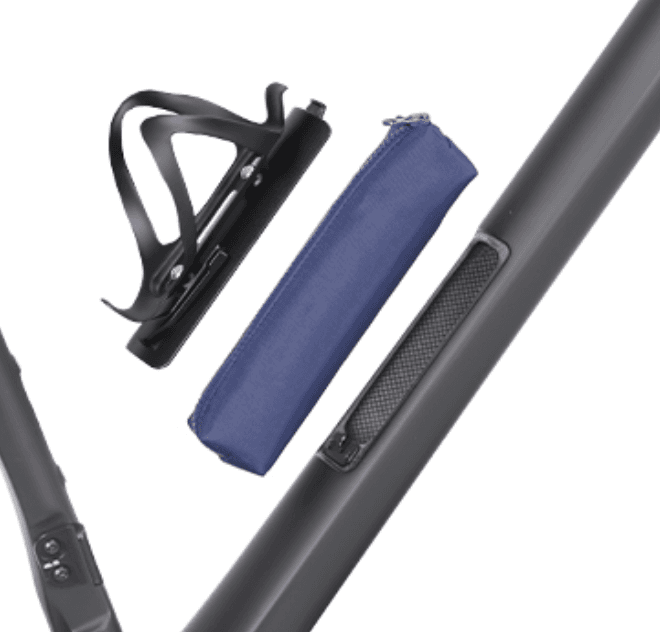

Integrated Storage
Innovative downtube storage system provides convenient access to tools, spare tubes, and essentials. Includes custom fitted pouch and bottle cage mounting.

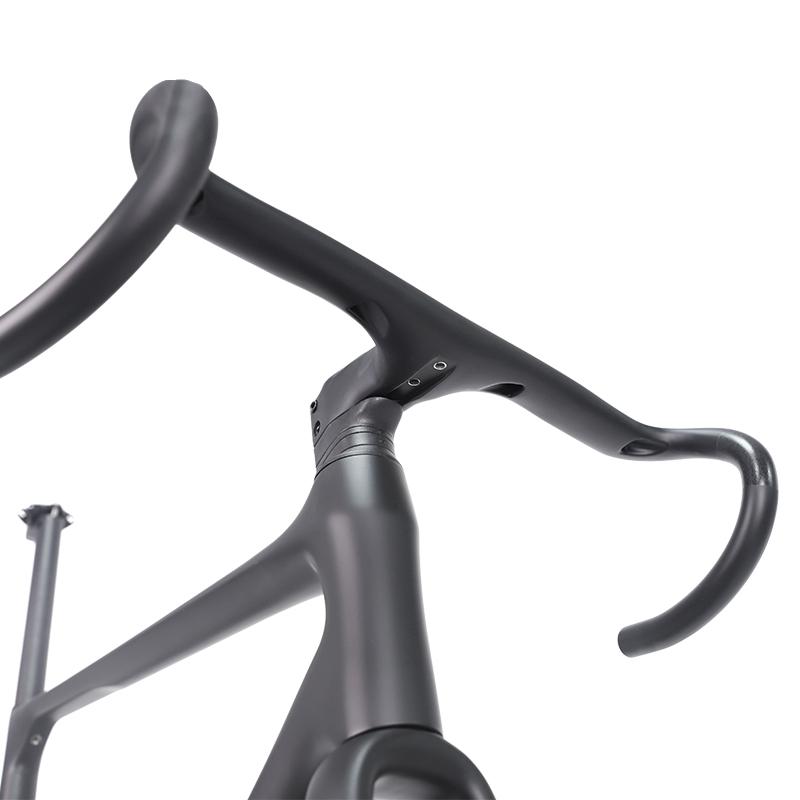

Integrated Cockpit
Fully integrated handlebar system with internal cable routing for a clean, aerodynamic front end. Available in multiple widths to suit your riding style.
German Engineering Excellence
Every SchönMO frameset is designed and engineered in Germany, using cutting-edge carbon layup techniques and rigorous quality control standards. Our frames undergo extensive testing to meet ISO4210 certification, ensuring they exceed standards for performance, durability, and safety.
Technical Specifications

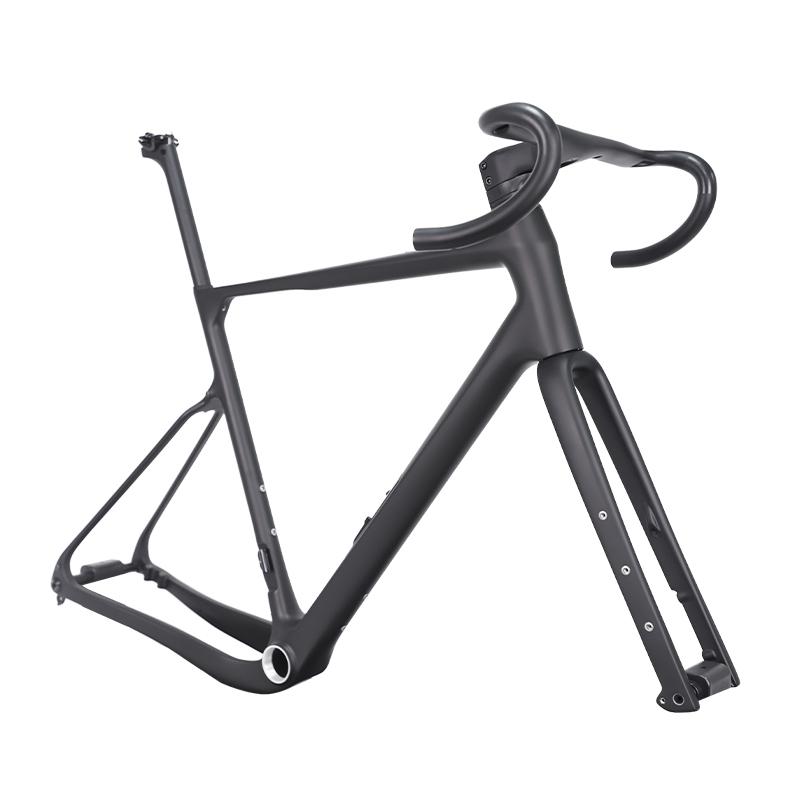

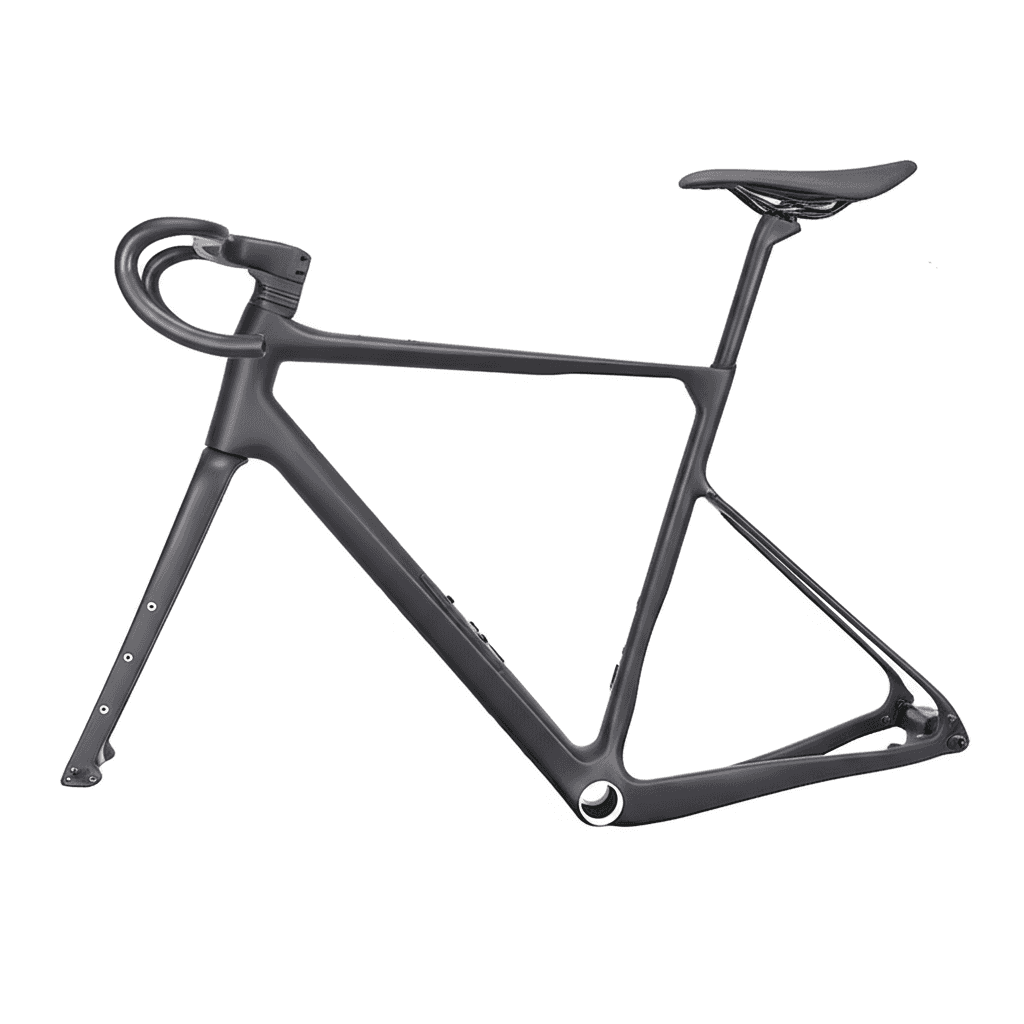

LightCarbon Gravel Frameset with Downtube Storage And Integrated Handlebar
Frame
Components
Compatibility & Features
Order Request
Ready to get your custom frameset? Fill out the form below and our team will contact you to discuss your specific requirements and fitting details.
Premium Support
Our team will work with you throughout the entire process to ensure your frameset meets your exact specifications.
